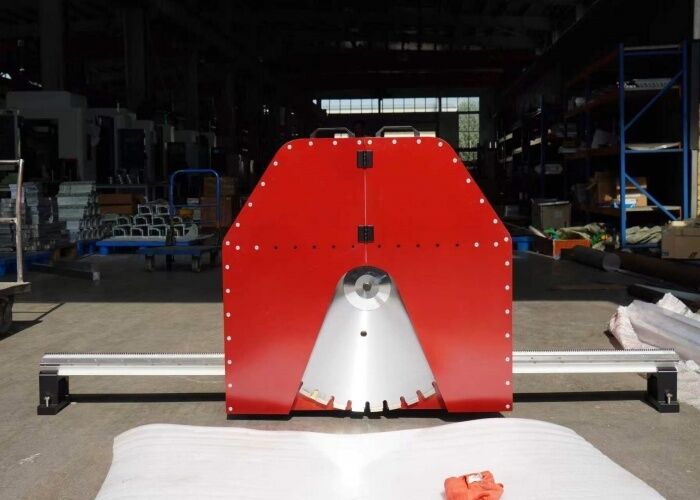

22kw HF Wall Saw for Concrete Demolition, Bridge Cutting and Building Renovation

22kw HF Wall Saw for Concrete Demolition, Bridge Cutting and Building Renovation

Introduction For 22kw HF Wall Saw for Concrete Demolition, Bridge Cutting and Building Renovation

Wireless remote control allows operators to stay outside danger zones while using this wall saw. It keeps users away from cutting risks like scratches, flying debris and structural collapse. Combined with automatic cruise control, the machine runs steadily and makes large-scale wall cutting much safer and easier.

Data Sheet For 22kw HF Wall Saw for Concrete Demolition, Bridge Cutting and Building Renovation

Product Features:

1. High Cutting Efficiency and Depth

2. High Precision and Smooth Cuts

3. Static Cutting: Low Noise, Low Vibration, and Eco-Friendly

4. Lightweight, Flexible, and Highly Adaptable

5. Stable Continuous Operation and Long Service Life

6. Intelligent Remote Control and Effortless Operation

Safety Features:

1. Electrical Safety

Leakage Protection (Core Feature): One-touch emergency shutdown in the event of current leakage or operational anomalies. The fully sealed design ensures high water resistance, making the unit suitable for complex working environments involving moisture, dust, and other challenging conditions.

Overcurrent / Overload Protection: Automatically cuts off power or reduces operating speed when current levels become abnormal, preventing motor burnout.

Phase Loss / Undervoltage Protection: Automatically shuts down the unit in the event of a missing phase in the three-phase power supply or unstable voltage conditions.

Waterproof & Insulated Design: The motor and electrical control box feature a high ingress protection (IP) rating, making them fully compatible with water-cooled cutting operations.

2. Mechanical & Overload Protection

Full Saw Blade Guard: Covers the non-cutting areas of the blade to prevent accidental contact and protect against flying debris.

Anti-Kickback / Anti-Jamming: An intelligent control system adjusts the feed rate in milliseconds to minimize the risk of the saw blade jamming or kicking back.

Emergency Stop (E-Stop): Equipped with dual emergency stop buttons—located on both the remote control and the machine body—allowing for immediate shutdown in hazardous situations.

3. Intelligent Control Safety

Remote Wireless Control: Enables the operator to maintain a safe distance from the hazardous work zone, thereby avoiding risks associated with cuts, flying debris, and structural collapse.

Automatic Cruise & Load Monitoring: Real-time monitoring of current and torque; automatically reduces speed or shuts down the unit in the event of an overload.

4. Structural & Operational Safety

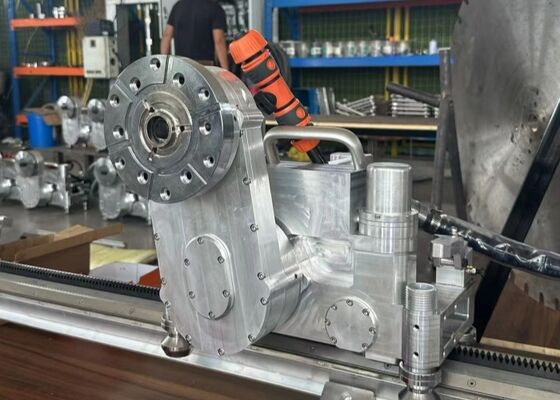

Secure Guide Rail Locking: The cutting head is firmly locked to the guide rail to prevent accidental shifting or detachment.

Dual-Switch Activation: Requires the simultaneous engagement of two switches to start the machine, preventing accidental activation.

Cooling & Burnout Prevention: Features a water-cooling circulation system combined with temperature monitoring to provide automatic protection against overheating.
