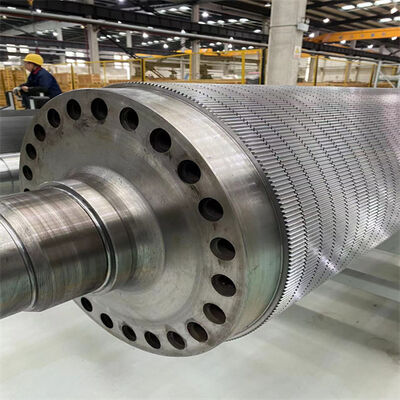

Flute Hard Chrome Corrugating Metal Roller Wear Resistant With Longer Using Life
Flute Hard Chrome Corrugating Roll Description:
Hard chrome corrugated rolls are industrial rollers used in the manufacturing of materials such as paper, cardboard, textiles, and plastics. These rollers feature a corrugated surface pattern, which imparts a specific texture or pattern onto the processed material. They are constructed with a high-strength steel core and coated with a layer of hard chrome plating. This plating offers a highly wear-resistant surface capable of withstanding the high pressures and temperatures common in industrial manufacturing processes.
Flute Corrugating Rolls Flute Type:
| Flute Type |
Flute |
Teeth/300mm |
Height of Flute |
| A |
UV |
30±2 |
4.6-4.9 |
| C |
UV |
39±3 |
3.6-3.9 |
| CB |
UV |
44±2 |
3.0-3.4 |
| B |
UV |
50±2 |
2.6-2.9 |
| BE |
UV |
66±3 |
1.9-2.1 |
| E |
UV |
90±10 |
1.1-1.5 |
| F |
UV |
124±10 |
0.7-0.8 |
| G |
UV |
185±12 |
0.5-0.65 |
| N |
UV |
200±15 |
0.4-0.5 |
| O |
UV |
267 or design |
0.25-0.35 |
Hard Chrome Corrugated Rolls Features:
1.Employing advanced heat treatment and plating technology, as well as high quality 48CrMo alloy steel forge piece,we can offer a wide range of rolls featuring high precision ,high hardness and long life.
2.It adopts computer assistant design,and sets allitems parameters scientifically, soitinsures the quality specification economical,reliable and reasonablel
3.It has big CNC corrugated roll precision grinding machine group,and they all work for corrugated roll.l
4.Computer control to grind the concave rolll
5.Select the good quality of 48CrMo, 50CrMo alloy steel forge piece
Adopt Germany advanced process to quenchin super ficialinter mediate frequency,hardened layer>7mm,hardness>HRC58-60(HS73-80),the hardness uniform with no soft zone.l
6.We adopt the most advanced high-efficiency Atotech.Heef-25micro-cracks functional chrome plating technology and equipment,to be morerigid,smoother,more light,more wear-resistant surface hard chrome plating,electroplating longer life than ordinary more than 25 percent.
7.We provide repair service for old corrugated roll at anytime
About us
Huatao Group was founded in 2008. We are a professional and leading supplier of various rollers for paper machine, corrugator, rubber & plastic industry, nonwoven fabric industry over 15 years of experience.
Paper Industry: forming roller, vacuum couch roller, dandy roller, breast roller, rubber press roller, stone press roller, rubber roller, dryer cylinder, size press roller, calender roller, pope reel roller, spreader roller, embossing roller.
Plastic & Rubber industry: chill roller, MDO preheating roller, MDO nip roller, MDO stretching roller, PRS cooling roller, corona treater roller, corona treatment nip roller, flame treatment roller, CFRP contact roller, CFRP tension roller, CFRP nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller.
Nonwoven fabric industry: cylinder roller, doffer roller, CFRP guide roller, embossing roller, cooling roller, spreader roller.
With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and our products have been exported to more than 96 countries and have a good reputation.
Huatao understands that each customer may have different requirements, which cannot meet from one factory, but we can meet, we are also familar with domestic factory advantages with matching superior quality and help customer not walk bend road.
We pursue each customer is buying and using HUATAO products with a rest assured heart and service is never end.
